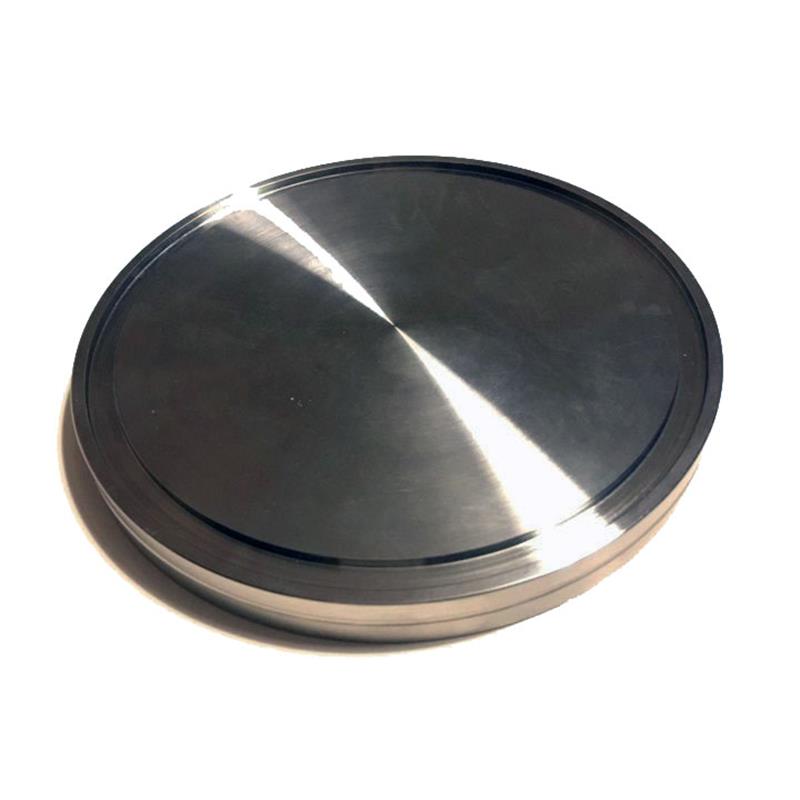

The Nitrosis CF (ConFlat) flange series is engineered to deliver long-lasting, leak-tight, and reliable connections in high and ultra-high vacuum (HV/UHV) systems.
Each flange is manufactured with precision CNC machining, controlled surface roughness, and strict quality standards, ensuring outstanding performance in vacuum applications down to 10⁻¹⁰ mbar.
Key Features
-
High vacuum sealing: Metal gasket (copper, silver, gold-plated, etc.) provides a completely leak-tight connection
-
Material options: Stainless steel 304L / 316L – low magnetic permeability and excellent corrosion resistance
-
Temperature resistance: Operates from cryogenic levels up to 450 °C
-
Reusable body: Long service life with simple gasket replacement
-
Standard compatibility: Available in all industry-standard CF sizes from DN16 to DN250
-
Optional accessories: Bolt–nut sets, alignment rings, and gaskets
Applications
-
High and ultra-high vacuum lines
-
Cryogenic systems and liquid nitrogen circuits
-
Surface science and semiconductor research systems
-
Vacuum coating and thin-film deposition technologies
-
Scientific laboratories, defense, and aerospace applications
Technical Information
CF flanges operate based on a metal-to-metal sealing principle.
A soft metal gasket—typically OFHC copper—is compressed between flange faces under applied torque, plastically deforming to form a permanent, leak-tight seal.
This design ensures low gas permeability, high mechanical strength, and repeatable vacuum performance.
Nitrosis CF flanges provide durable and dependable performance in both laboratory-scale and industrial vacuum systems, ensuring consistent sealing integrity over long-term use.
