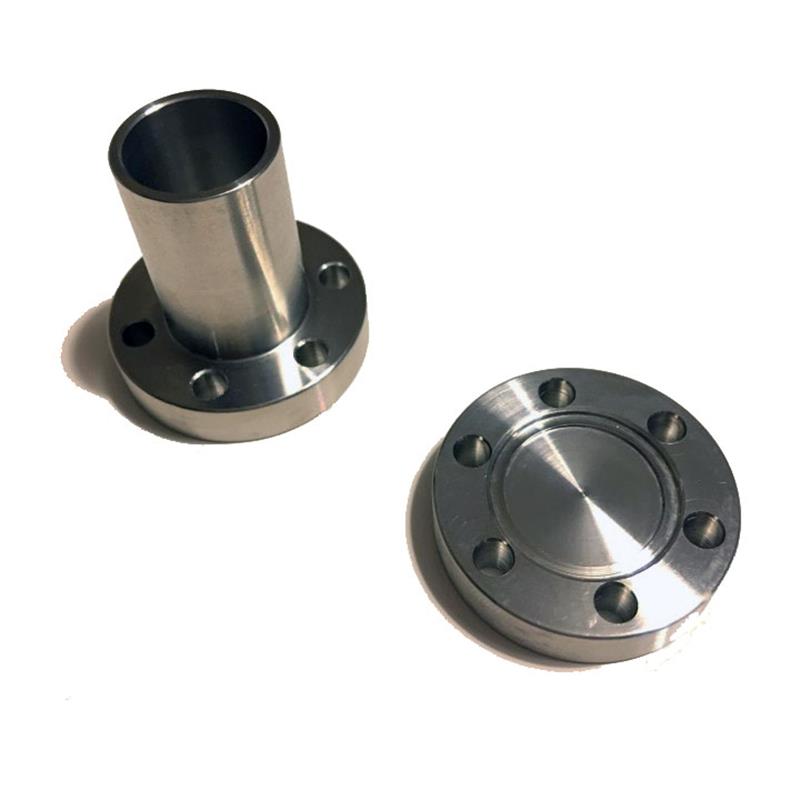

Nitrosis CF nipples are designed to provide reliable, leak-tight, and durable connections in high and ultra-high vacuum systems.
Each nipple is precision CNC-machined and manufactured to meet strict standards for surface finish, sealing integrity, and ease of installation.
CF nipples are fully compatible with ConFlat (CF) flange systems and deliver outstanding performance even under high temperature and pressure, thanks to their stainless-steel construction.
Technical Specifications
-
Material: Stainless Steel (304L or 316L)
-
Connection Type: CF Flange – Tube End (Weld Stub / Nipple)
-
Vacuum Rating: Down to 10⁻¹⁰ mbar
-
Surface Finish: Polished, low roughness (Ra < 0.8 µm)
-
Sealing Type: Metal gasket (Cu gasket)
-
Temperature Range: Up to 450 °C
-
Size Range: DN16 – DN250 available
Key Features
-
Excellent vacuum sealing reliability
-
High corrosion and temperature resistance
-
Full CF standard compatibility
-
Long service life
-
Backed by Nitrosis quality assurance
Applications
